From the Nystrom Performance Library
1943 Chevrolet M6 Service Manual - TM 9-1765B
- Make
- Chevrolet
- Model / application
- M6 Bomb Service Truck
- Document type
- Historical ordnance maintenance manual
- Pages
- 363
Inside this document
Original printed-page guide:
Contents: pages 1-4
Introduction: page 5
Engine inspection, troubleshooting, overhaul, assembly, fits, tolerances and tools: pages 6-131
Engine ignition system: pages 132-144
Fuel system, carburetor, pump, filter and air cleaner: pages 145-175
Clutch assembly: pages 176-192
Transmission: pages 193-217
Transfer case: pages 218-241
Brake system and Hydrovac: pages 242-277
Steering gear: pages 278-295
Shock absorbers: pages 296-308
Starting motor: pages 309-320
Generator and controls: pages 321-347
References: page 348
Index: pages 349-362
The PDF begins with the original front cover, so each printed page is one page later in the PDF viewer.
About this scan

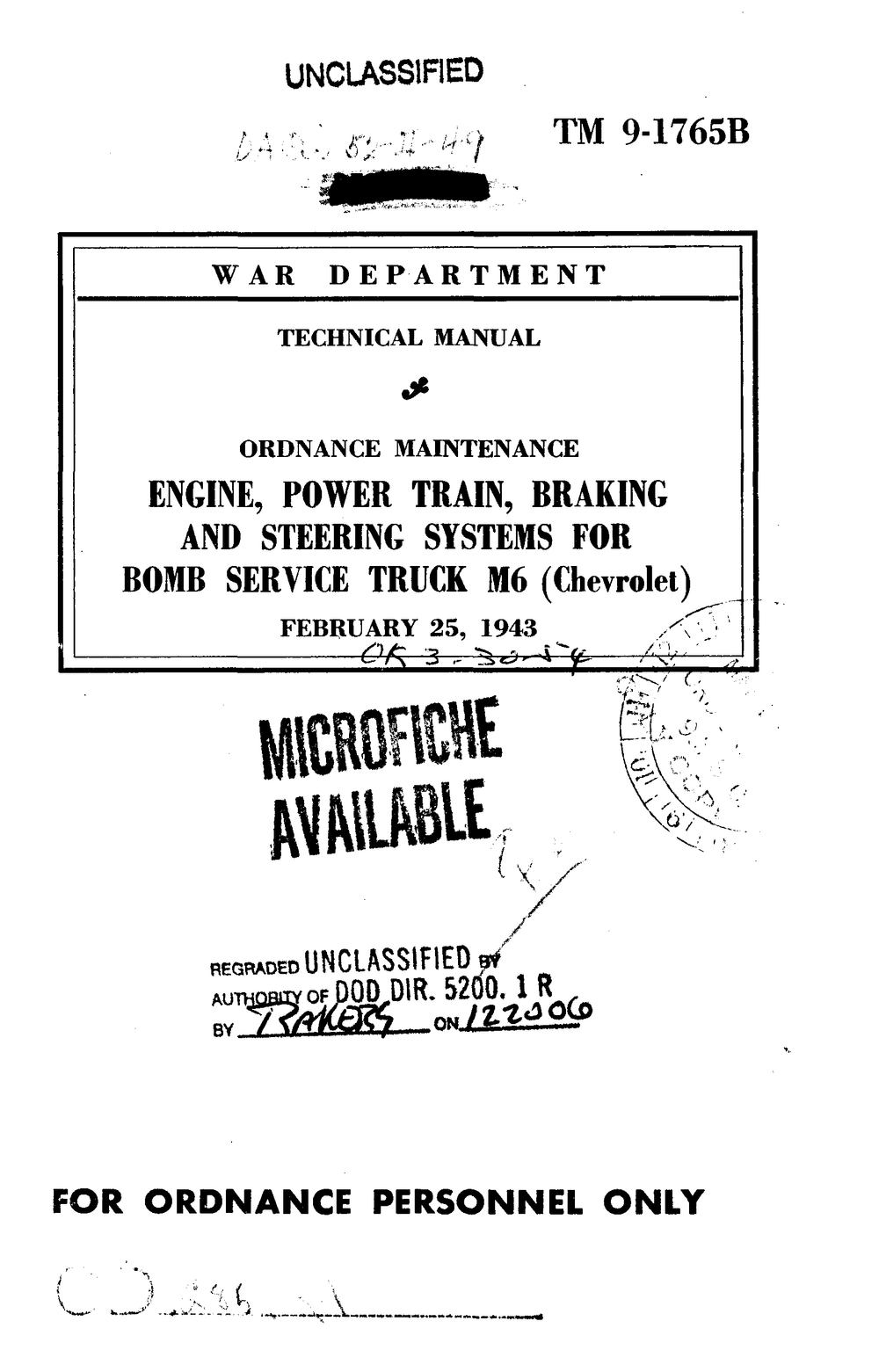

Unchanged 363-page source PDF: original front cover followed by printed pages 1-362 in uninterrupted order. This is the 25 February 1943 base edition. The rear cover, blank cover surfaces and later change supplements are not present. Numbered service content is complete in this scan; completeness of every original unnumbered insert or wrapper is not independently established.
Each source page is a 300 ppi black-and-white bilevel scan. Body text, tables and line drawings are generally readable; photographs have limited tonal detail. Original library, microfiche and declassification marks remain. Ink partly obscures the repeated running title on printed page 2; the contents entries below it remain readable. OCR is searchable but imperfect: check technical values against the page images. Historical service procedures and safety practices may be obsolete or unsafe.
Source and reproduction status
United States War Department / Internet Archive
This original War Department manual was prepared under the direction of the Chief of Ordnance, with Chevrolet Motor Division, General Motors Corporation cooperation. Its final page carries federal authorization and the Publications Department, Raritan Arsenal imprint. The exact Internet Archive item is marked Public Domain Mark 1.0. Review of the full scan found no separately identified copyrighted insert or private licensed material. These combined sources support this United States public-domain assessment; no worldwide clearance or institutional permission certification is claimed. Internet Archive credits AHEC digitization, but that credit has not been independently matched to a live AHEC item record. Source: https://archive.org/details/TM9-1765B. Public Domain Mark: https://creativecommons.org/publicdomain/mark/1.0/. No manufacturer, government or repository endorsement is implied.
Read the original.
